Overview
The S18 continues to build on the Model S platform with an 18 HP engine and Walker’s patented Grass Handling System with Thru-Shaft PTO. It is faster and more powerful, and with reduced weight, the S18 is designed to be productive and efficient. Able to run 36 to 56 inch decks, the S18 is the perfect choice for residential properties, gated yards, and demanding customers.

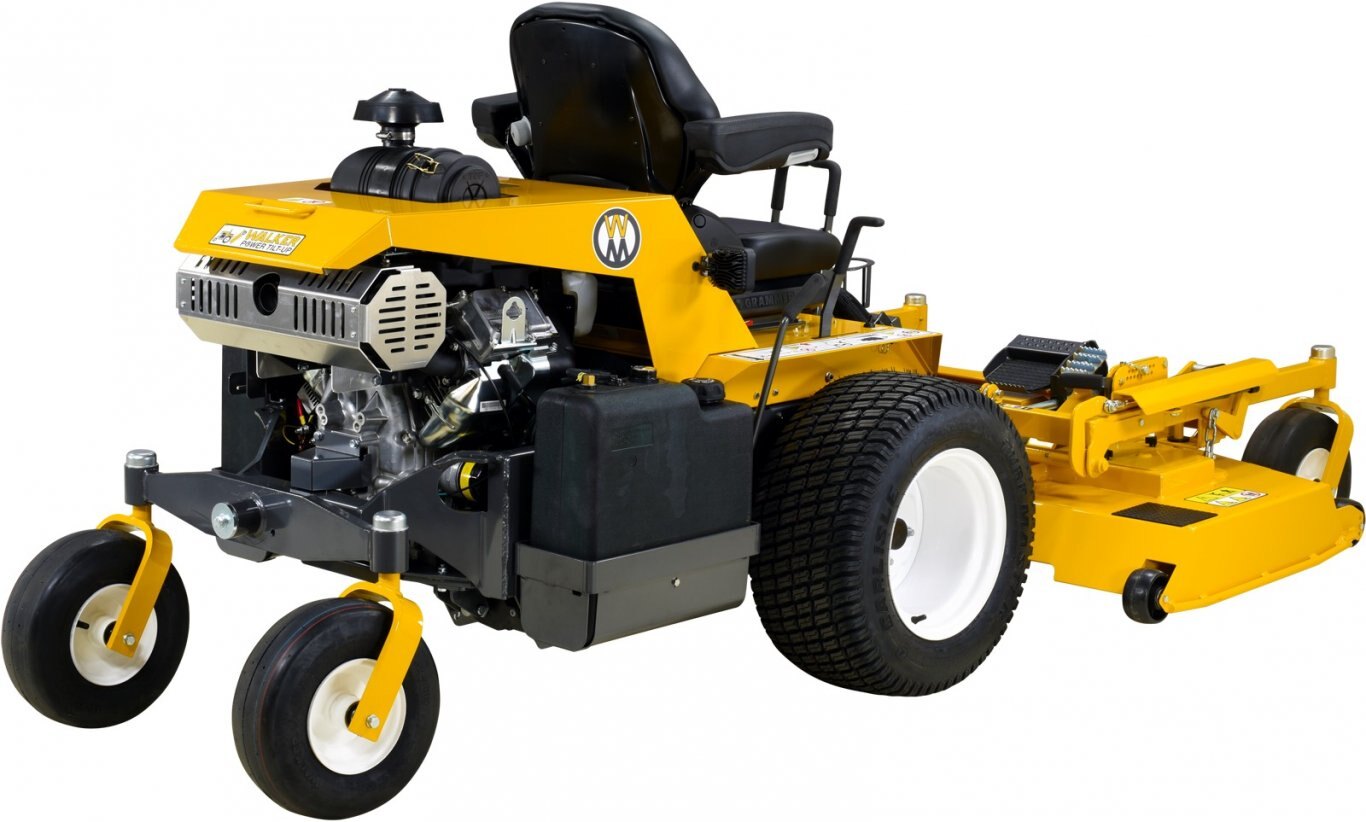

Powered by a 993cc big block Vanguard EFI engine, the H37i is a powerful and efficient machine for the professional user. Its engine with high capacity air cooling system, big 5 inch diameter Donaldson air cleaner, Grammer suspension seat, and fully articulating decks means the H37i can mow complex properties easier, in harsh conditions longer. And, with the optional Model H Power Tilt-Up® deck, maintenance and storage are even easier.



Specifications
Model
H37i
Year
2022
Sale Type
New
Manufacturer
Walker Mowers
Type
Non-Collection
Decks
8 Discharge, 2 Mulching
Power
37 HP
Engine
Briggs & Stratton Vanguard
Key Attributes
Powerful, efficient, high production
Standard Options
22 x 10.5-12 Turf Tire, Suspension Seat
Ideal Application
Commercial, Rural, and Large Properties, Field Cutting
h37i comparison

H24d

H27i

H37i
Engine
Fuel System
Cooling System
Displacement
Max Power
Max Torque
Fuel Capacity
Seat Suspension Seat Suspension Seat Suspension Seat
Tires 22 x 10.5-12 Turf Tire 22 x 10.5-12 Turf Tire 22 x 10.5-12 Turf Tire
Weight 997 lbs (452 kg)[1]
1434 lbs (650 kg)[2]		 748 lbs (340 kg)[1]
1185 lbs (537 kg)[2]		 778 lbs (353 kg)[1]
1215 lbs (551 kg)[2]
Dimensions 36.625 in (93 cm)" H* x 66 in (168 cm)" W x 107 in (272 cm)" L[2] 46.5 in (118 cm)" H x 66 in (168 cm)" W x 107 in (272 cm)" L[2] 46.5 in (118.1 cm)" H x 66 in (168 cm)" W x 108 in (274.3 cm)" L[2]
[1] Tractor only. [2] Tractor with R64 deck. * ROPS folded.




engine
Fuel
Gasoline (unleaded - min. 87 octane)
Model
Briggs Vanguard Big Block
Max Power
37 HP @ 3650 RPM
Max Torque
53 ft-lbs
Oil Filter
Briggs & Stratton P/N 842921
Displacement
993 cc (60.6 cu. in.)
Manufacturer
Briggs & Stratton Vanguard
Fuel Capacity
9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve
Cooling System
Air
electrical
Battery
12V, 340CCA
Charging Output
50 Amp DC (Regulated)
Charging System
Flywheel Alternator
transmission
Neutral
Transaxle Release by Manual Dump Valve
Steering
Hand Lever Control, Individual Wheel
Parking Brake
Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h)
0-10 MPH (16 km/h) Infinitely Variable
Manufacturer/Model
Dual Independent Hydro-Gear ZT3400 Integrated Transaxles
Forward Speed Control
Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
blade drive
PTO Shaft
Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch And Brake
Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]
deck
Cutting Height
1 to 5 in (2.5 to 13 cm)
Deck Suspension
Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Recommended Cut Width
Side Discharge: 48 to 74 in. (152 cm), Rear Discharge: 52 to 64 in. (132 to 163 cm)
tires
Drive
22 x 10.50-12 (4-Ply Low-Profile)
Tailwheel
13 x 5.00-6 (Pneumatic 4-Ply)
size and weight

LENGTH

  • Tractor Only: 69 in (175 cm)
  • Tractor with R64 deck: 108 in (274.3 cm)
  • Tractor with deck tilted: 87.75 in (223 cm)
  • Tractor wheel base: 45.25 (115)

WIDTH

  • Tractor Only (Outside Tire): 46.5 in (118 cm)
  • Tractor with R64 deck: 66 in (168 cm)
  • Tread Width: 36.5 in (93 cm)

HEIGHT

  • Tractor: 46.5 in (118.1 cm)

WEIGHT

  • Tractor Only: 778 lbs (353 kg)
  • Tractor with R64 deck: 1215 lbs (551 kg)
